Linear actuator FM4 / AM4

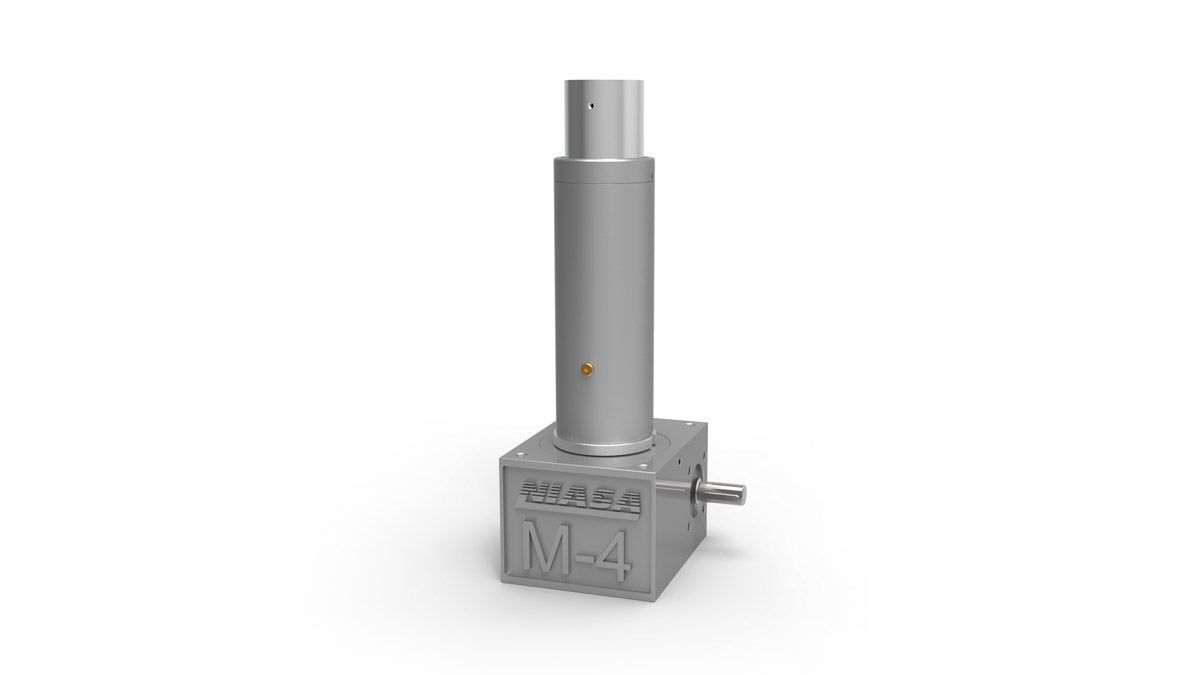

This is the linear actuator FM4/AM4 with integrated reduction and cubic gearbox.
Linear actuator FM4 / AM4
Linear actuator FM4 / AM4 is a linear actuator with integrated reduction and cubic gearbox.
The linear actuator FM4 has a steel exterior tube and the linear AM4 has an aluminium exterior tube (stem anti-rotation and magnetic sensor is optional).
Sign- or log in to the 3D-configurator to configure the linear actuator FM4 / AM4.
Technical specifications - Linear actuator FM4 / AM4
Specifications
-
Up to 50kN
-
TR 45x7 (trapezoidal)
KGS 4010 (ball screw)
KGS 4020 (ball screw)
KGS 4040 (ball screw)
-
S = 7:1 (standard)
H = 28:1 (slow)
