Screw support size SH40

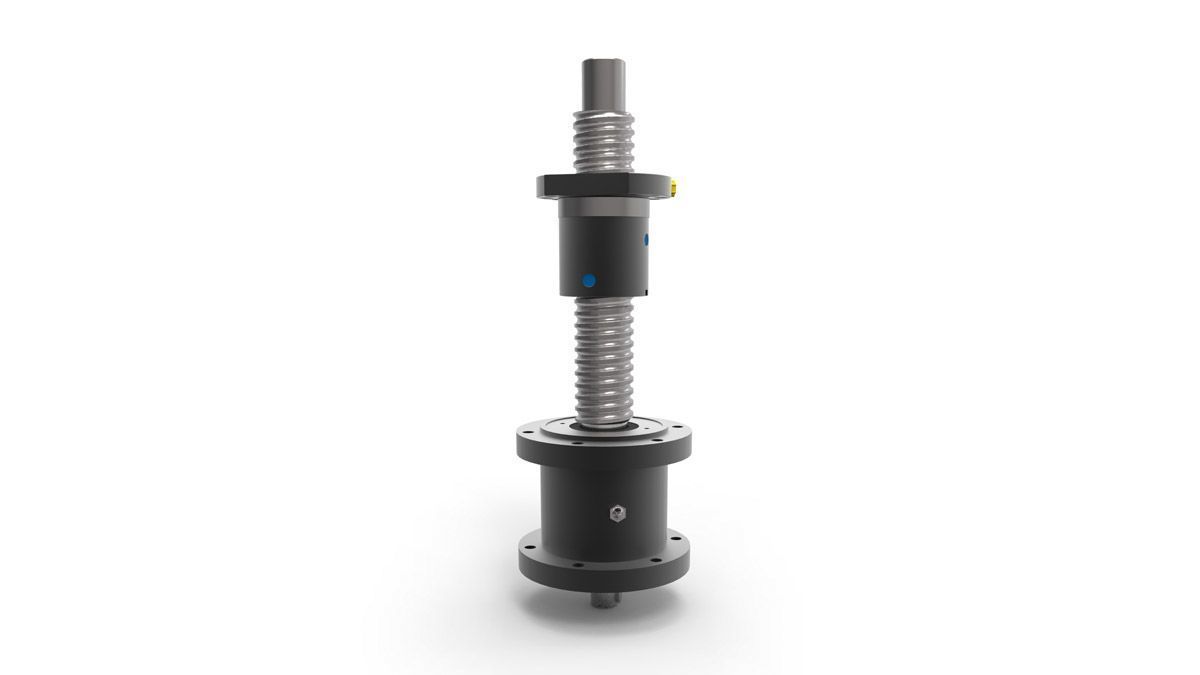

Screw support SH40.
Screw support size SH40
Screw support size SH40 is offered in several configurations that can be adapted to different requirements as mentioned in the configuration section. Other configurations can be ordered (size, type, etc.) on request.
Screw support size SH40 operates with trapezoidal as well as ball screws.
Sign- or log in to the 3D-configurator to configure the screw support size SH40.
Technical specifications - Screw support size SH40
Specifications
-
Up to 45kN
-
TR 50x8 (trapezoidal screw)
TR 60x9 (trapezoidal screw)
TR 30x6 (trapezoidal screw)
KGS 5010(ball screw)
KGS 5020 (ball screw)
KGS 6310 (ball screw)
KGS 6320 (ball screw)
-
Basic configuration
-
In line motor reducer
-
Parallel drive
-
For drive at 90°
-
Motor reducer at 90°
-
In line motor
